Introduction

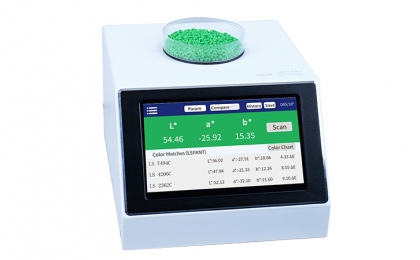

WS177 large aperture spectrocolorimeter adopts D/8 illumination geometry, with 50mm large test aperture,

specialized in color measurement and color comparison of non-transparent materials such as powder, masterbatches and so on.

The spectrocolorimeter not only has various  color spaces and color difference formulas, but also can display spectral reflectance curves,

which is widely used in color management and quality control in the fields of paint, plastic, food, medicine and so on.

The colorimeter  also provides professional mobile APP and PC software to support data export and report printing.

Features

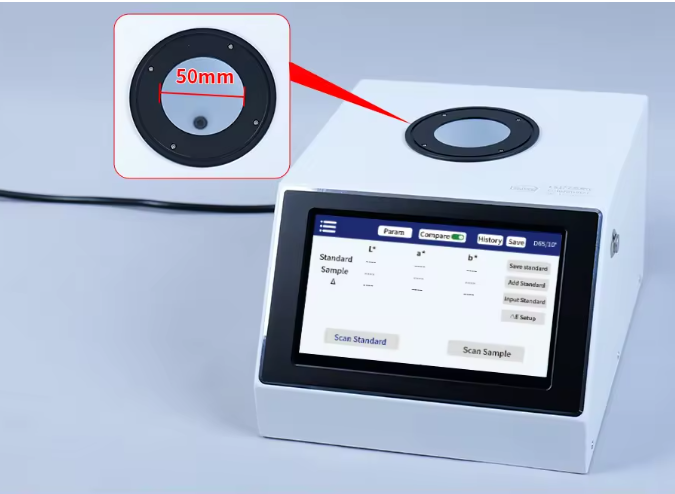

Measuring aperture up to 50mm, especially suitable for color difference measurement of objects with rough surfaces

such as masterbatches, powders and rough fabric;

Display of spectral reflectance curves;

Good repeatability, △E*ab≤0.03;

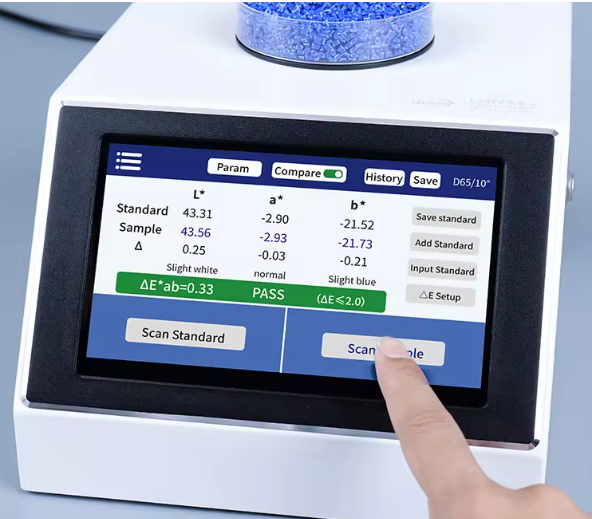

imple operation, two-step color difference measurement;

Built-in multiple universal electronic color charts;

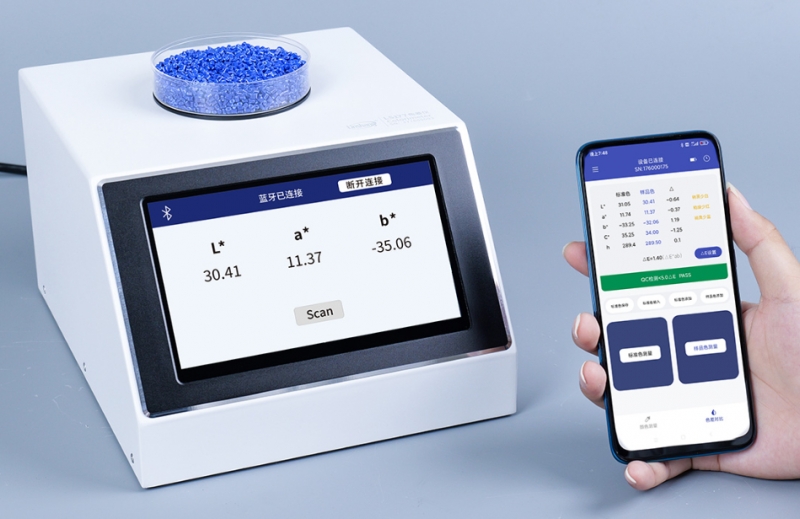

Cell phone App is more functional;

Provide PC software, support data import and export.

Specification

Illumination geometry    D/8, specular component include (SCI)

Illumination light source    Full spectrum LED light source

Spectral range    400-700nm

Spectral interval    10nm

Measuring aperture    50mm

Measurement conditions    Light source D65, field of view 10°

Measuring time    About 1.5s

Color space    CIE Lab, Luv, LCh, Yxy, CMYK, RGB, WI-98, WI-Gauz, WI-Hunter, YI-98, WI-R457, Reflectance

Color difference formula    ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00, ΔE*cmc(1:1), ΔE*cmc(1.4:1)

Repeatability    Standard deviation ΔE*ab is within 0.03 (Measurement condition: the average value of 30 measurements on the whiteboard at an interval of 3s after calibration)

Inter-instrument agreement    △E*ab<=0.4, based on avg. of 12 BCRA series II tiles

Dimension    21.1 × 26.4 × 15.5cm (L×W×H)

Weight    About 3.29kg

Power supply    100~277V 0.4A 50/60HZ

Display    7-inch 1024*600 dot matrix IPS color screen

Language    Simplified Chinese, English

Data transmission    USB, Bluetooth

Operating temperature range    0~45℃, 0~85%RH (no condensation)

Storage temperature range    -25~55℃, 0~85%RH (no condensation)
