Introduction

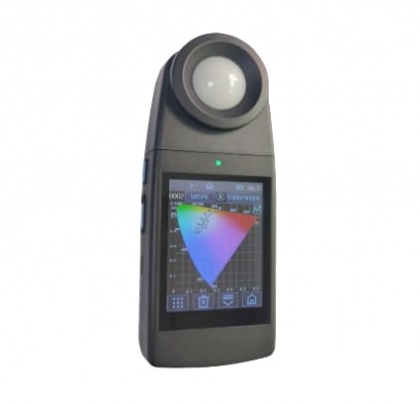

CL600 series spectrometer is a cost effective illuminometer.

The illuminometer uses multichannel filter as a spectroscopic component, which can collect the wavelength 400700 nm(different types,different configurations).

It outputs 1 nm interval irradiance spectrum, and the Ev range can reach up to 200,000 lx.

The instrument is equipped with a 2.8-inch TFT capacitive touch screen, 4000 mAh Li-ion battery, Bluetooth / WIFI multi-function chip, Mass storage device.

The instrument can not only measure the irradiance spectrum, illuminance, CCT,CRI, white balance,

but also measure the parameters of UVI index, blue light hazard,display color gamut, uniformity, CQS, TM-30, TLCI-2012,flicker and other parameters.

Features

1. Wavelength range of 400-700nm, 1nm output, cost effective, with high accuracy and stable performance.

2. 2.8-inch TFT capacitive TP, 4000 mAh Li-ion batteries,TypeC/bluetooth/WIFI, the portable design of artificial aesthetics.

3. Ev, CCT, CRI, UVI index, blue light hazard, uniformity, CQS, TM-30, TLCI-2012, flicker and so on.

4. Powerful measurement function, user-friendly function module to distinguish, simple operation.

5. Built-in D65, A, C, D50, D75 and other standard illuminator spectrum ,convenient for spectral comparison.

6. Screen can be locked to avoid maloperation; the measuring head can be detachable and installed 180 degrees reversely.

7. Type C and Bluetooth multiple interfaces (Customizable WIFI) have a wide range of application scenarios.

8. It is widely used in LED lighting,display, multimedia,eye protection lamp,UV,laboratory,and so on.

Specification

Model CL600

Standard GB/T 7922 ,GB/T 5700,GB/T 5702,JJG 245,GB/T 24824,GB⁄T 36979,ANSI C78 377,GB 50034,CIE S 009,GB⁄T 20145,GB/T 9473,GB/T 15609

Wave range 400～700nm,910nm(HalfWidth 100nm),UVA

Wave Interval 1nm

Spectrophotometric Mode

Multichannel Filter Accuracy (Light source A）Ev:5％1display value; xy:0.002(10～200000lx) / xy:0.0025　(5～10lx)

Repeatability (Light source A) Ev:0.5％1

Display value; xy:0.001(500～200000lx) / xy:0.002(100～500lx) xy:0.003(20～100lx) / xy:0.005(5～20lx)

Cosine Response Ev:<=4％

Measurement Mode Auto mode,Flash mode,Flicker mode(except CL500), Continuous mode, Average mode

Measuring Time Auto mode:0.110 s

Observer Angle 2(CIE1931)

Color Space Spectrum,CIE XYZ, Ev xy, Ev u'v' Colorimetric Index

1. Ev,CCT(K),CRI; CIE31x,y; CIE76u',v'; CIE31 X,Y,Z; Duv,SDCM,S/P,White Balance; Peak,Center,Centroid;λd,PE,PC;Ee,Eb,Eg,Er,Erb,R(%),G(%),B(%);

2. Display screen Gamut,Gamut Area(%),ΔCuv;

3. Points/9 Points Uniformity;

4.CIE31 xy diagram,CIE76 u'v' diagram,CRI/CQS histogram,CRI/CQS radar chart, MacAdam ellipse diagram,White Balance diagram

Data Storage Sample 5000 Pcs

Dimension L*W*H=154X62X39mm

Weight about 192g Battery Li-ion battery,3.7V,4000mAh(8000 measurements within 24 hours)

Display 2.8-inch TFT color LCD, Capacitive Touch Screen

Data Port Type C USB，Bluetooth 5.0 (Customizable WIFI)

Language English, Chinese

Operating Environment -1040℃(085%RH/no condensing)

Storage Environment -2050℃(085%RH/no condensing)

Standard Accessory Power adapter,USB cable,manual,PC Software(Download from office website),Protective Cover, Wrist strap,Wiping cloth
