Range: | 1.2~225.0mm (steel) |
Pipe measurement lower limit: | Φ20x3mm (steel) |
Measurement error: | ±(1%H+0.1)mm.H is the actual thickness of the measured object |
Sound speed adjustment range: | 1000~9999m/s |
Measuring range: | 1000~9999m/s, when the thickness of the test block is less than 20mm, the speed of sound is measured Accuracy is ±1%; when the thickness of the test block is> 20mm, the accuracy of sound velocity measurement is ±5% |
Inquiry |
|
Introduction

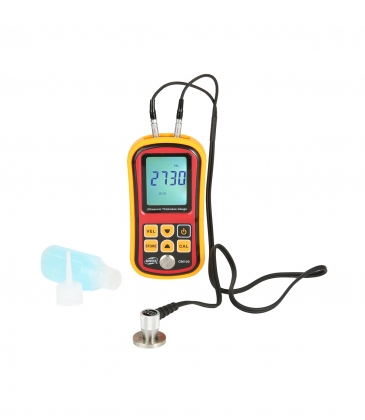

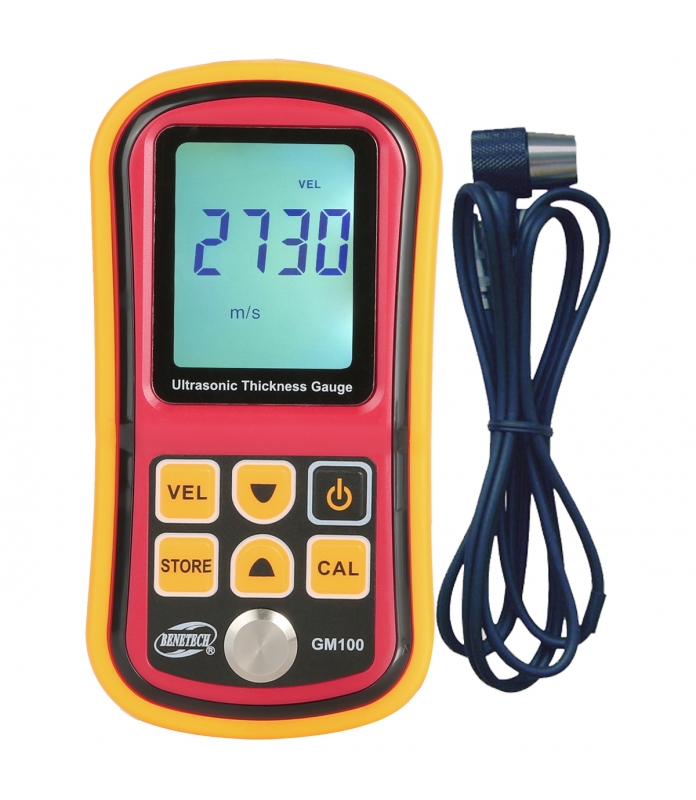

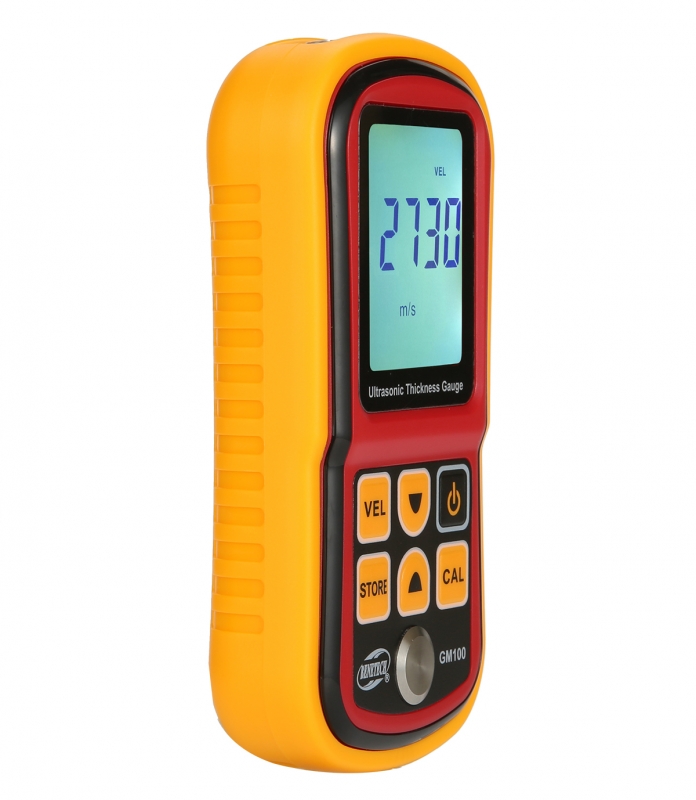

This ultrasonic thickness gauge is an intelligent handhold product, which adopts ultrasonic measuring principle,
and is controlled by micro processor, provides quick and precise measurement of thickness for most of industrial material.
This unit is widely used in various precise measurement for different hardware / parts in industrial realm; one of its important applications is to monitor the level of during operation of various and pressure container.
Diffusely applied in manufacture fields, metal processing,and commercial inspection.
The material that conduct and reflect constant sonic velocity, this product is to be applicable to used.
Features
1.Data storage/deletion
2.Measuring sound velocity
3.LCD backlight display
4.Low battery reminder
5.Automatic shut-down
Specification
Display mode: four-digit LCD display
Display minimum unit: 0.1mm
Working frequency: 5MHz
Measuring range: 1.2~225.0mm (steel)
Pipe measurement lower limit: Φ20x3mm (steel)
Measurement error: ±(1%H+0.1)mm.H is the actual thickness of the measured object
Sound speed adjustment range: 1000~9999m/s
Inverse sound velocity with known thickness:
Measuring range 1000~9999m/s, when the thickness of the test block is less than 20mm, the speed of sound is measured
Accuracy is ±1%; when the thickness of the test block is> 20mm, the accuracy of sound velocity measurement is ±5%
Operating temperature range: 0~40℃
Power supply: three 1.5V AAA alkaline batteries
Working current: normal test ≤50mA; open LED backlight ≤120mA;
Static current≤20uA;
Dimensions: 72x146x29mm
Product weight: 202G
Payment: T/T in advance.
Delivery: as a manufacturer with sufficient ready-made stock, normally deliver the goods within 1-3 working days.
If for quantity order, please enquire delivery time privately, we will ship your order as agreed.
Warranty: 1 year quality warranty and lifetime maintenance (except consumables)
