Introduction

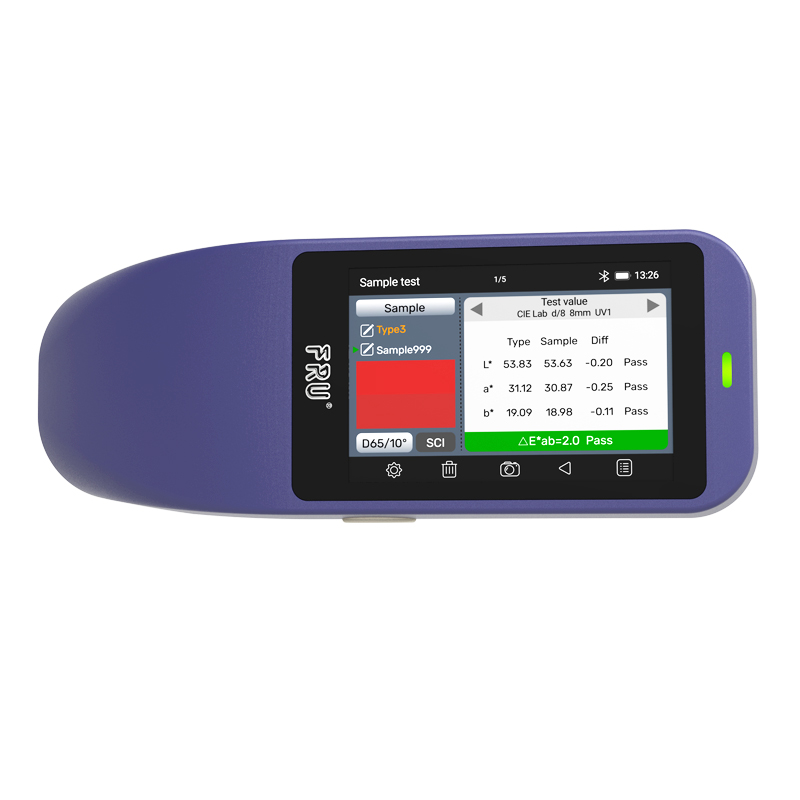

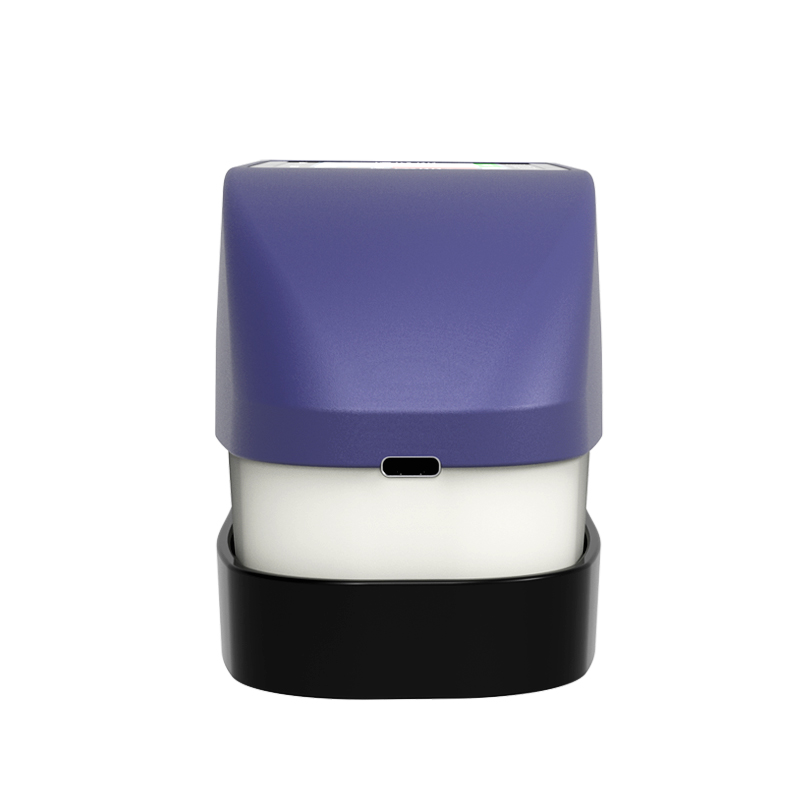

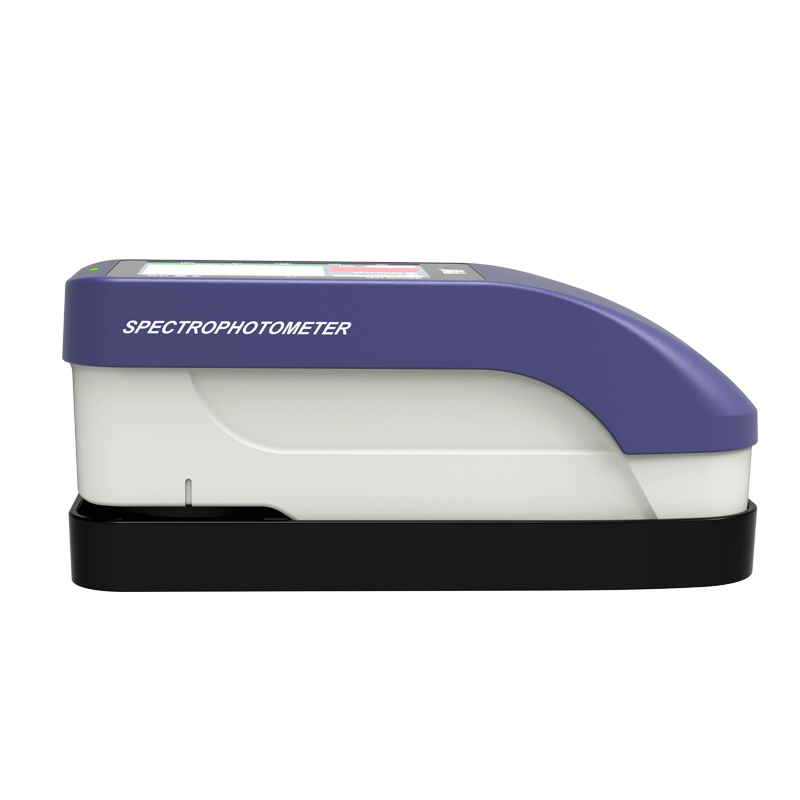

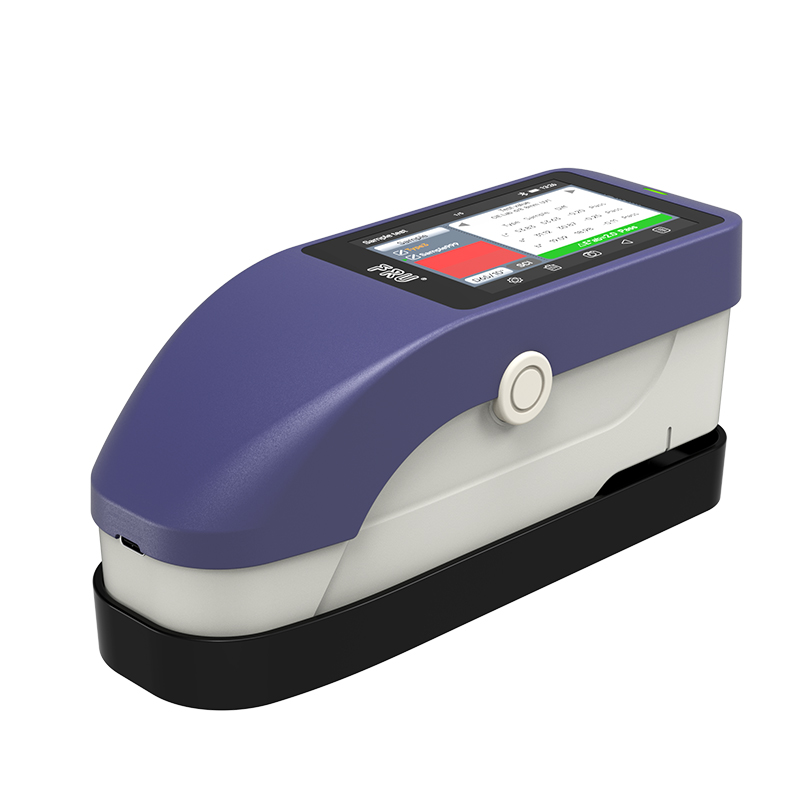

SY series portable spectrophotometers are latest spectrophotometers developed by Shenzhen CDW.

There are two versions and four models. Various apertures can be switched to suit different products to be tested.

SY series spectrophotometers are designed for high-quality measurement, equipped with a variety of professional components,

supporting 30 color spaces, 11 kinds of color difference formulas, 25 kinds of measurement light sources, give you more accurate measurement data.

SY series spectrophotometer adopts ergonomic design, compact body and unique grip, allowing you to easily perform measurement operations on the large-size touch screen.

More Bluetooth connection APP to expand more functions. Make color test anytime, anywhere.

SY series spectrophotometer is a spectrophotometer newly developed by Shenzhen CDW.

SY series spectrophotometer adopts a combination of long-life, low-power, full-spectrum LED light source and dual-optical path array sensor.

It has stable performance, accurate measurement and powerful funotions. It can be widely used in paint, plastic, resin, textile, leather, etc. to help you achieve ideal color control.

Features

High-end electronic hardware

Full spectrum combination light source

A variety of measurement models

White porcelain callbration board

Specification

Model SY3020

Aperture 4mm

SCl

Light type Full spectrum LED

Fix position Visual

Repeated Accuracy △E≤0.07

Color space CIE-Lab,CIE-LCh,Luv,Hunter-Lab,XYZ,Yxy,sRGB,DIN LAB99,CMYK(A/T/E/M/l),Field density,Munsell,Rellectance (bright vision),Blackness,

Yl yellow,Isochromatic spectrum (light jumping),hiding power,tint/strength/dye,Color fastness,Taube whiteness,Berger whiteness,Tappi whiteness,

Cros whiteness,Cros whiteness,Stephansen whiteness,Ganz whiteness,Hunte whiteness (ASTM),Whiteness (CIE),AATCC whiteness,R457/1SO2470 whiteness,GB/T17644 whiteness

Color difference fomula △E*ab、AE*ch、AE*uv、AE*HunterLab、AE*CMC(l:c)、AE*94、AE*00、AE*sR GB、

AE*BFD、M*FCMII、AE*DIN99

Light source A、C、D50、D55、D65、D75、F1、F2、F3、F4、F5、F6、F7、F8、F9、F10、F11、F12、

CWF、U30、U35、DLF、NBF、TL83、TL84

Observer 10°(CIE1964)2°(CIE1931)

Wave length 400-700nm 10nm interval

Reflectivity Range: 0-200% Resolution: 0.01%

Sensor CMOS sensor

Geometric D/8 40mm integrating sphere

Callbration Default: Automatic

Display Resolution 0.01

Table ditlerence △E*ab≤0.4

Test speed 1.0s

Display 3.5 inch full color capacitive touch screen

Language 简体中文，繁体中文，English

Power Polymer Li-ion battery 10000 times full

Interface Type C Bluetooth

App platfom Andorid lOS Windows

Storage 8000 group Mass storage for APP

Slze 181x67x67mm(without base)

N.W/G.W 330g/1200g

Packing list Instrument, calibrate base, type C charger, user manual, warranty card, single aperture
