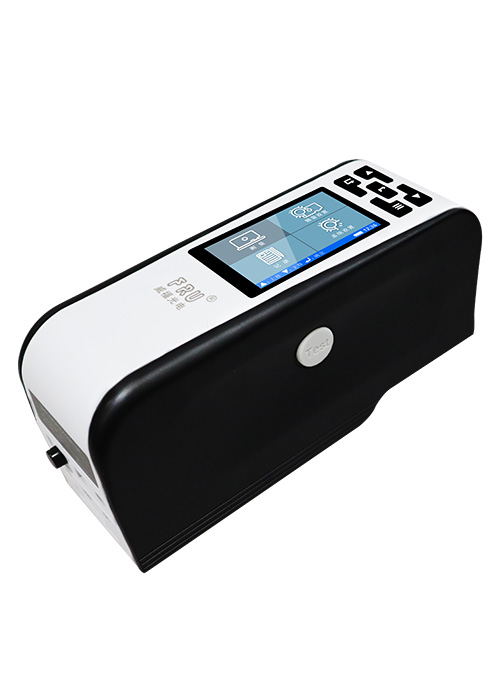

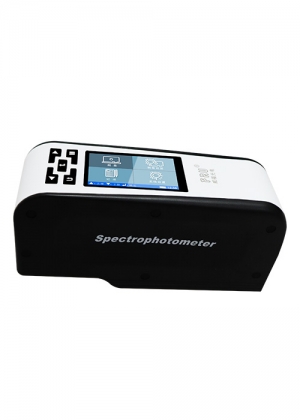

Introduction

This spectrophotometer is based on the Internatlonal Commisslen on Ilumination. Meet ClE related standards, national standards research and development institute.

The professional spectrophotometer produced by the key components of the mouth, have been carefully designed to be accurate and stalsle, easy to operate, easy to learn and understand.

Main Features

Accurate data and stable measurement

Large capacity lithium beattery

Multi-aperture switching

Convenient and effective positioning

lntuitlve and focused display

PC-side software with rich functions

The data is uploaded through the software on the computer side, and the computer program and algorithm are used for intelligent analysis to obtain a visual data view.

User can download and print related report result documents, and end-stage analysis documents can better help actual measurement.

In addition, user can also connect with a micro-printer to achieve real-time printing data report.

Specification

Model: WS2600 (Switchable Apertures 4mm & 8mm)

Geometric Conditions: d/8

Color Space CIEL*a*b*、CIEL*C*h、CIEL*u*v*、Hunter LAB、

CIEXYZ、Yxy、Reflectivity、CMYK、YI Yellowness、Ganz、R457 Whiteness、Taube Whiteness、z Whiteness、sRGB

Standard Light Source A、C、D50、D55、D65、D75、F1、F2（CWF）、F3、F4、F5、F6、F7、F8、F9、F10、F11(TL84)、F12(U30)

Light Source Combined LED

Color Diff. Formula △E*ab、△E*Ch、△E*uv、 △E*Hunter、△E*cmc(2:1)、△E*cmc(1:1)、△E*94、△E*00、△E*sRGB、△E*BFD、△E*FMCII

Measuring Aperture Switchable: Facula 4mm(Aperture Φ6mm) & Facula 8mm(Aperture Φ11mm)  / Single: Facula 16mm(Aperture Φ16mm)

SCI/SCE

Sensor Array Line array CMOS@256 pixels

Spectral Way Concave diffraction grating

Observer CIE10°(1964)、CIE2°(1931)

Wavelength coverage 400nm~700nm

Wavelength interval 10nm

Measuring interval 2.5 Second

Reflectance range 0%-200%

Repeated Accuracy △E＜0.05 （take the deviation average after 30 times measuring the whiteboard）

Table Difference △E＜0.3(Measure the RAL 12-color blocks)

Light source life More than 50,000 hours

Battery power Measuring more than 10000 times

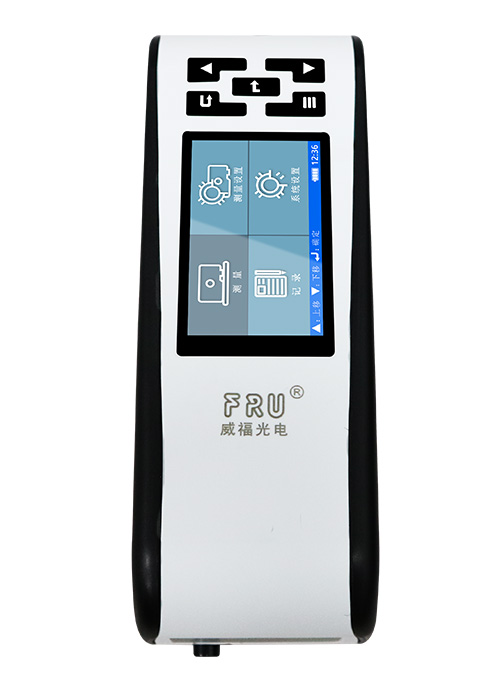

Display screen TFT true color 2.8inch@(16:9)

Data storage capacity Storage Standard 100 groups; Sample 16,000 groups

Operating temperature 0℃-40℃（32℉-104℉）

Storage temperature -20℃-50℃（-4℉-122℉）

Working humidity Relative humidity less than 85%,without condensation

G.W 5.5kgs

Package Size 39*34*20cm

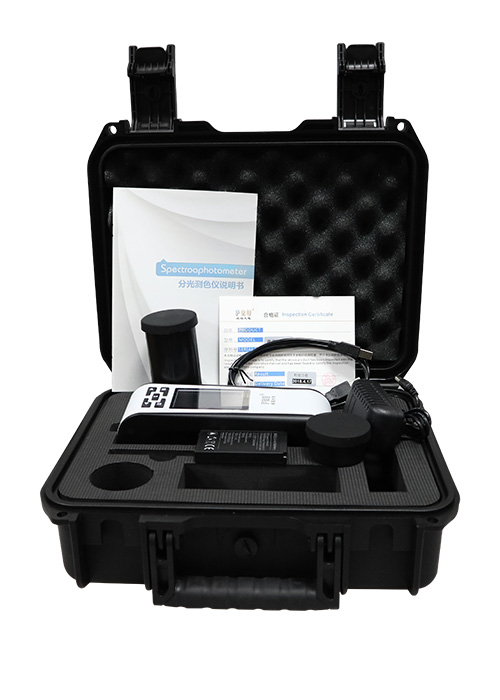

Standard accessories  Power adapter, standard white board, standard black cavity, lithium battery, specification, PC software

Optional accessories  Software(Advanced Version), Micro printer, Locating block
