Introduction

WG68 gloss meter is produced according to the national verification regulation of JJG696 standard, adopt long life light source, good repeatability, small volume, high precision and good stability.

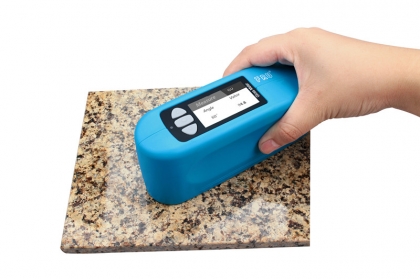

It is mainly used coatings, printing ink, paint, paint, wood, marble,   granite, bo to change polishing brick, brick of pottery and porcelain, plastic, paper, metal

and non-metallic materials to the surface of the mirror gloss measurement.

Standards for Gloss Meter

(1)、ISO2813，ISO7668

(2)、ASTM D523，ASTM D2457

(3)、GB/T 9754，GB/T 13891，GB/T 7706，GB/T 8807

Features

1. One button to complete triangle measurement: one operation can complete three angle measurement; Measuring light incident angle meet ISO 2813 three measuring light incident angle.

2. Optional angle mode: choose measuring angle or angle combination according to user needs;

3. Manually entering standard samples gloss data;

4. Three angle can store 50000 testing records, storage structure is: 100 prototypes, each prototype with 500 testing data.

5. Humanized design, good man-machine communication interface;

Attachment description

(1) Power adapter: standard + 5V, 2A external power supply;

(2) Standard board: provide calibration criterion.

(3) USB cable: connect instrument to PC.

 Specification
