Introduction

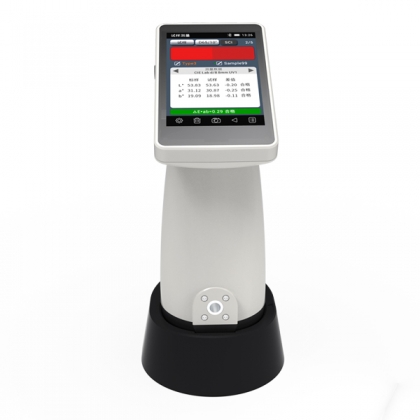

SR series portable spectrophotometers are WAF Optoelectronics.

The newly developed spectrophotometer, available in two versions.

With six models, a variety of apertures switching to adapt to different needs.

SR series spectrophotometers are designed for high-quality measurement, equipped wth a variety of professional components, supports 30 color spaces,

11 color difference fomulas, 25 measuring light source, giving you more accurate measurement data. SR series spectrophotometer adopts ergonomic design.

The compact body and unique grip allow you to easy operatien on the large touch screen. More Bluetooth connection APP to expand more functions.

Make color tested anytime, anywhere.

Main Features

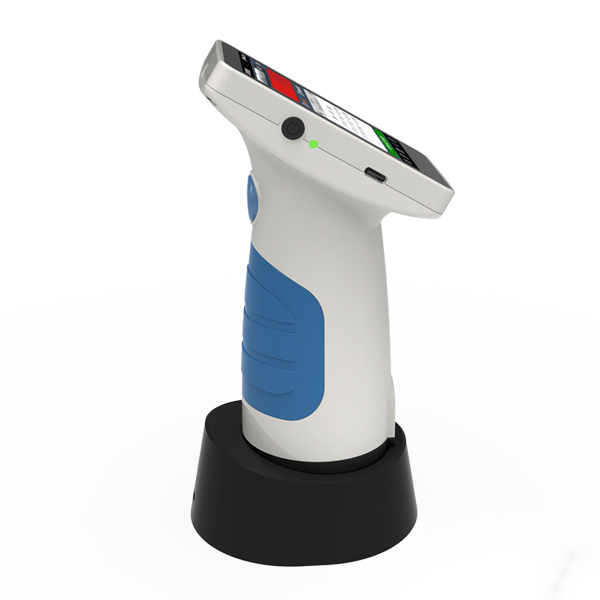

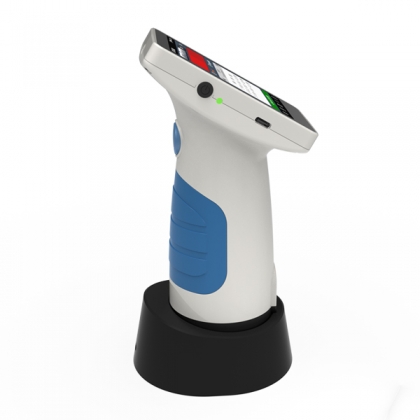

Small body, good grip

Full large color screen, freely touch

Bluetooth APP, Exclusive software

Accurate measurement, high-precision structures

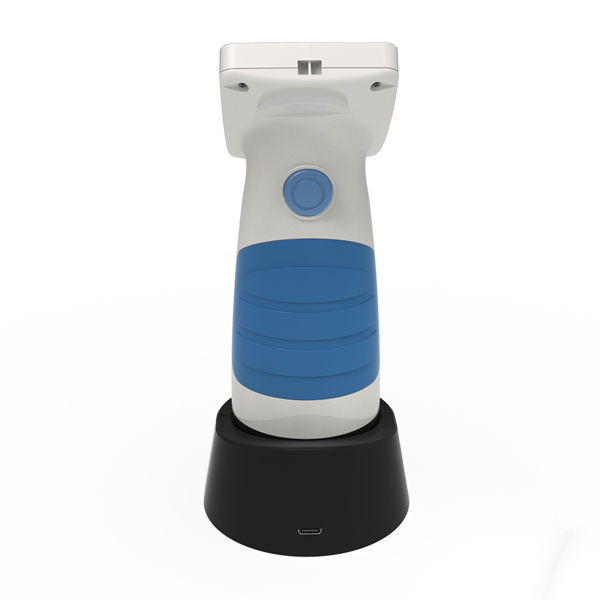

Two-pronged multifunctional base

Comprehensive features allow your measurements te be completed quickly and accurately.

d/8 measurement structure, SCl/SCE optional, support 30 kinds of color spaces, 11 kinds of color difference formulas,

25 kinds of measurement Iignt sources, a variety of measurement methods to ensure the best measurement quantity conditions.

Repeatability ΔE*ab≤0.07, inter-unit difference ΔE*ab≤0.4, data is stable and reliable, ensuring effcient management of cooperatien between factories and suppliers.

Specification

Model    SR211

Aperture   Φ4mm

SCI/SCE    SCI (lnclude specular light)

Light type    Full spectrum LED

Fix position    Visual

Repeated accuracy    ΔE*ab<0.07

Color space    CIE - Lab、CIE - Lch、Luv、Hunter - Lab、XYZ、Yxy、sRGB、DINLAB99、DENSITY(A)C,M,Y,K、DENSITY(T)C,M,Y,K、DENSITY(E)C,M,Y,K、DENSITY(M) C,M,Y,K、DENSITY(I)

C,M,Y, K、Mun sells Reflects nce、Black ne ss、Yi yellownessx Metamerisms Covering powers Coloring power / strength / dye strength、Color fastnessx Taube whiteness、Berger whiteness、TAPPI whiteness、Cross whiteness、Stephensen whiteness、Ganz whiteness、Hunter whiteness、ASTM whiteness、CIE whiteness、AATCC whiteness、R457 / iso2470 whiteness、GB / t17644 whiteness

Color difference formula    ΔE*ab、ΔE*ch、ΔE*uv、ΔE*Hu nterLab、ΔE*CMC(l:c)、ΔE*94、ΔE*00、ΔE*sRGB、ΔE*BFD、ΔE*FCMII、ΔE*DIN99

Light source    As C、D50、D55、D65、D75、Fl、F2、F3、F4、F5、F6、F7、F8、F9、F10、Fll、F12、 CWF、U30、U35、DLF、NBF、TL83、TL84

Observer angle    10° (CIE1964) /2° (CIE1931)

Wavelength    Interval:! 0nm、Range: 400nm-700nm

Reflectivity    Range： 0-200%、Accuracy： 0.01%

Sensor    CMOS Sensor

Geometric    d/8、40mm Integratingsphere

Calibration    Automatic

Certificate    Pass the certificate

Display Solution    0.01

IIA    ΔE*ab<0.4 (RAL 12 Average for 12 Color blocks)

Test speed    1.0s、2.0s(SCI/SCE test at the same time)

Operation    Capacitive touch screen

Display    3.5 inch Full color LCD

Battery    Polymer battery, Continuous test for 10000 times with fully charged

Interface    Type C/ Bluetooth

Language    简体中文、繁体中文、English

APP support    Android/IOS/Windows

Storage    The fuselage stores 8000 pieces of data, and supports app mass storage

Dimension    184x93x62mm (Without base)

Weight    320g (Without base)

Packing List    Instrument、Calibrate base、Type c cable、Charger、User's manual、Warranty card Base fixing piece、2 calibres (single calibre version)、4 calibres (double calibre version)
