WG60 Gloss Meter (0-200GU)
| Range: | 0-200Gu |
| Angle: | 60° |
| Storage: | 100 groups |
| Repeatability: | 0.2Gu |
| Error: | 1.0Gu |
| Applications: | paint, ink, stoving varnish, coating, wood products; Marble, granite |
| Applications: | vitrified polished tile, pottery brick and porcelain, plastic, printing, paper; other metallic material. |
| Division Value: | 0.1Gu |
| Inquiry |
|
Introduction
1. All performance indexes meet the primary working machine requirements of metrological verification procedures of national standard JJG696-2002
2. Apply on paint, ink, stoving varnish, coating, wood products; Marble, granite, vitrified polished tile, pottery brick and porcelain; Plastic, paper and metal,etc.
3. International Standard 60° ISO－2813、ASTM－C584、ASTM－D523、DIN－67530、ASTM－D2457、JND-A60、JND-P60
Specification | ||||||||||||
Model | WG60 | |||||||||||
Measurement Range | 0-200Gu | |||||||||||
Application | Apply on paint, ink, stoving varnish, coating, wood products; Marble, granite, vitrified polished tile, pottery brick and porcelain, plastic, printing, paper; other metallic material. | |||||||||||
Instrument Dimensions | 122x34x60mm | |||||||||||
Projection Angle | 60° | |||||||||||
Measuring Spot | （ellipse: long axis*minor axis）8mm*4mm | |||||||||||
Measuring Mode | Automatic measurement/ manual measurement/single measurement/average measurement and cross measurement for a variety of combination measuring mode | |||||||||||
Standard Sample Setting | Manually setting standard and tolerance to determine “pass” or “failure”. | |||||||||||
Data Storage | 100 groups | |||||||||||
set standard sample in any stored data, user-define the tolerance range | ||||||||||||
Language | Chinese/English | |||||||||||
Output | connect the micro printer to realize real-time output of measured data | |||||||||||
Division Value | 0.1Gu | |||||||||||
Repeatability | 0.2Gu | |||||||||||
Reproducibility | 0.4Gu | |||||||||||
Indication Error | 1.0Gu | |||||||||||
International Standard 60° | ISO－2813、ASTM－C584、ASTM－D523、DIN－67530、ASTM－D2457、JND-A60、JND-P60 | |||||||||||
National Standard 60° | GB 9754、GB 9966、GB 8807 | |||||||||||

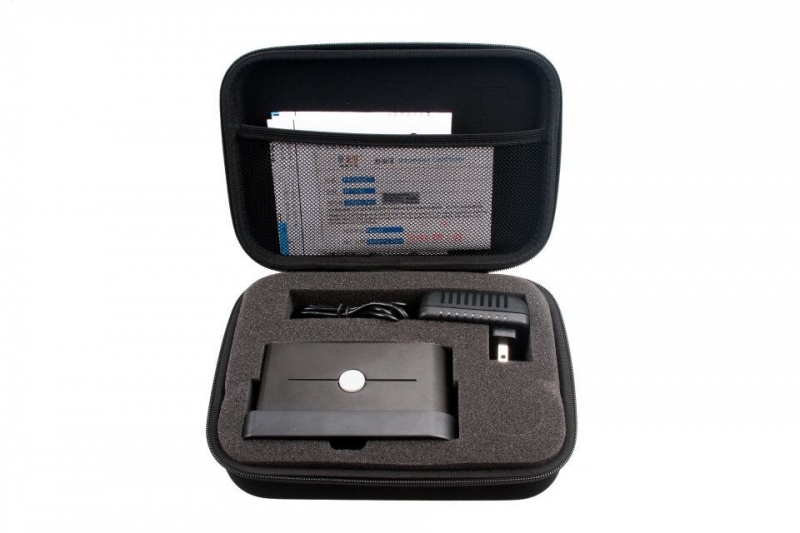

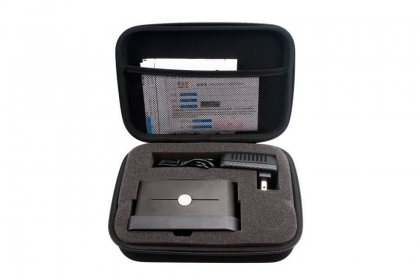

Standard Accessories | Power adapter/user manual/warranty certification/standard board | |||||||||||
Optional Accessories | micro-printer | |||||||||||
Payment: T/T in advance.
Delivery: as a manufacturer with sufficient ready-made stock, normally deliver the goods within 1-3 working days.
If for quantity order, please enquire delivery time privately, we will ship your order as agreed.
Warranty: 1 year quality warranty and lifetime maintenance (except consumables)
