Introduction

It is mainly used on coatings, printing ink, paint, paint, wood, marble, granite, polishing brick, brick of pottery and porcelain, plastic, paper, metaland non-metallic materials, more stable performance.

Features

1. PC software can be extended more functions.

2. USB communication interface to communicate with PC;

3. The machine has automatic shutdown function, low power warning functions, full data storage hint functions;

4. Data browsing and viewing function.

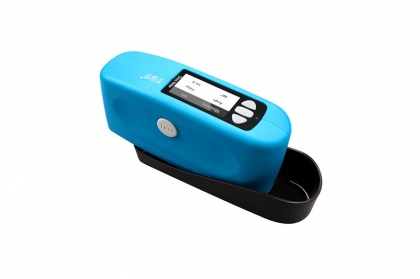

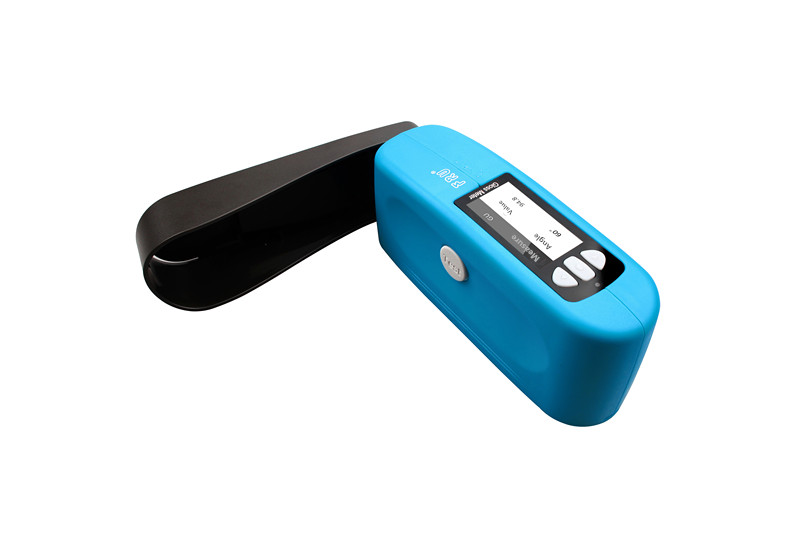

Gloss Meter WG60A Function Description

(1) One button to complete measurement: one operation can complete measurement; Measuring light incident angle meet ISO 2813 three measuring light incident angle.

(2) Manually entering standard samples gloss data;

(3) Humanized design, good man-machine communication interface;

(4) Single angle can store 10000 testing records, storage structure is: 100 prototypes, each prototype with 100 testing data;

(6) Data browsing and viewing function;

(7) The machine has automatic shutdown function, low power warning functions, full data storage hint functions;

(8) USB communication interface to communicate with PC;

(9) PC software can be extended more functions.

Attachment Description

(1) Power adapter: standard + 5V, 2A external power supply;

(2) Standard board: provide calibration criterion.

(3) USB cable: connect instrument to PC.

Specification

Measuring Angle 60°

Measuring Range 0-1000GU

Measuring Spot 61*14  mm

Division Value 0-1000: 0.1Gu

Repeatability 0-100: 0.2Gu >100:0.2%

Indication Error ±1.5Gu

Zero Error 0.2Gu

Working Temperature 10℃ - 40℃

Storage Temperature -10℃ - 70℃

Humidity Range Relative humidity less than 85%, without condensation

Power Adapter Section 2 5 alkaline batteries/power adapter

Volume 159x49x72mm

Weight 500g
