Introduction

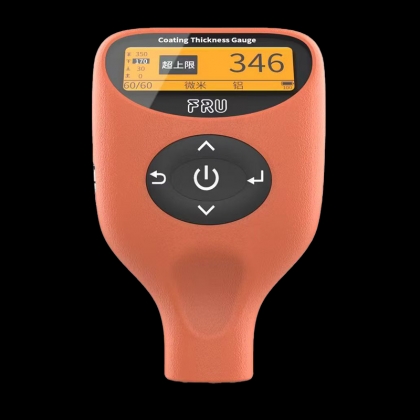

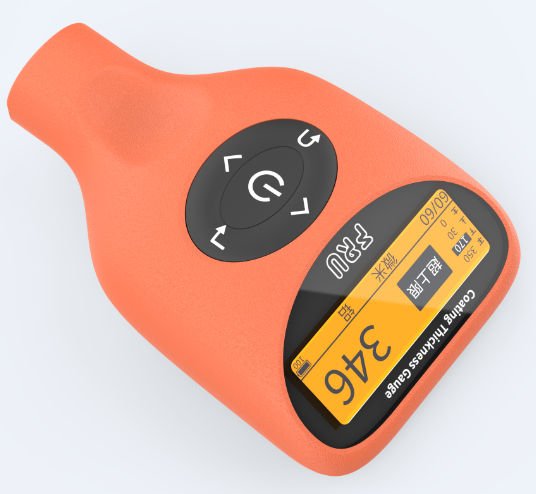

The coating thickness gauge is professionally used for the measurement of the painting film thickness of car bodies.

Generally, car bodies are made of metal materials, such as iron and aluminum, and non-metal materials, such as carbon fiber and plastics.

The gauge can measure the painting film thickness on the ferrous and aluminum materials.

Moreover, it can identify not only non-metal car bodies, but also the ferrous putty layer as well as the galvanized iron.

With 3 color backlight, it makes the measurement results clear at a glance.

The instrument also integrates Bluetooth function, which can use cell phone APP or WeChat mini program to record the paint thickness value of different parts of the car

and the corresponding shell material, and can generate test reports and information plates to share with friends.

Features

Rich functions and easy operation;

Simple mode and expert mode optional;

Each vehicle has 19 component groups, with 6 measurement points stored for each component,

providing more accurate assessment of the vehicle's condition;

Intelligent identification of ferrous putty;

Automatic recognition of vehicle body substrate;

Customized alarm value;

Wide measurement range, up to 5000μm;

Equipped with the App for generating inspection reports.

Specification

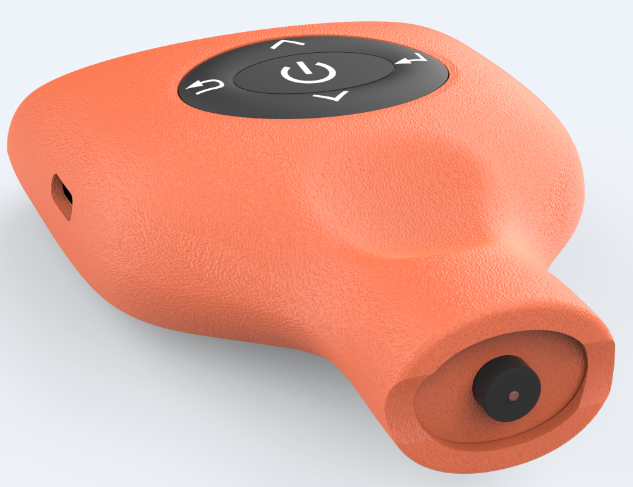

Probe tip Ruby

Measurement principle Fe: Hall effect / Al: Eddy current

Probe type Integrated

Measuring range 0.0-5000μm

Resolution 0.1μm/1μm/10μm

Accuracy 0-3000μm: ≤±(3%H+2μm), H is the standard value

3000-5000μm: ≤±(5%H+2μm), H is the standard value

Unit μm / mil

Measuring interval 0.5 s

Minimum measuring area Ø = 25mm

Minimum radius of curvature Convex: 5mm / Concave: 25mm

Minimum substrate thickness Fe:0.2mm / Al:0.05mm

Display 192×64 dot matrix LCD

Power supply Rechargeable lithium battery 3.7V@1200mAh

Range of working temperature -20℃-50℃

Storage temperature range -20℃-60℃

Host size 108*70*31 mm

Weight (including battery) 88.8g

Data transferBluetooth
