Introduction

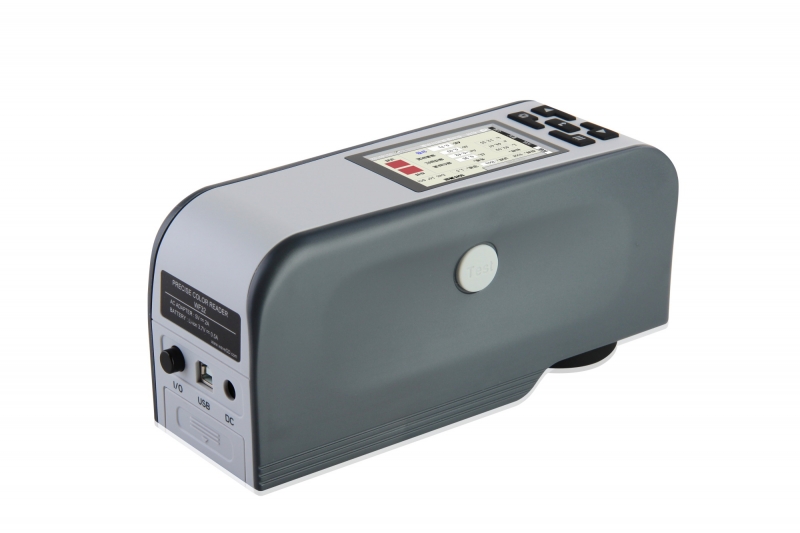

WF series Colorimeter is a professional colorimeter designed and produced subject to the relevant standards of International Commission on Illumination (CIE) and national stands.

Being with brand new imported key components, the instrument is well designed and features in precision, stability, easy handling, easy to learn and cost-effective.

The instrument applies to the color quality control, color difference control, color difference analysis, sampling testing and online testing

for industries as textile, printing and dyeing, garments, shoes, leather, chemical, plastic, pigment, paint, ink, printing, metal, photography and toys etc.,

as well as to the auxiliary color matching during the processes as injection, inking, painting and spraying coating etc.

Features

High repeatability<0.03

Manual black and white calibration

Detect yellowness and whiteness

Color simulation function

6 kinds of color spaces

8 kinds of formula

8 kinds of light resources

Specification

Model WF32

Color Space CIELAB/CIELCH/CIEXYZ/CIELUV/HunterLAB/sRGB

Color Difference Formula

△E*ab/△ECMC/△EISO/△ECIE94/△EFCMⅡ/△ELuv/△Ehunter/△Es/RGB

Measurement Caliber Φ4mm or Φ8mm or Φ16mm

Illumination Condition CIE Recommendation：8/d

Light Source A C D50 D65 F2(CWF) F7 F11(TL84)F12(U30)

Sensor Photodiode array

Observer CIE 10° Standard observer

Measurement Range L: 0 to 100

Contain light way SCI SCE

Software YES

Color simulation YES

Repeated Accuracy △E<0.05(take the deviation average after 30 times

measuring the whiteboard)

Units Difference △E<0.2

Measurement Interval 0.5 Sec.

Storage Capacity Type sample data : 100 groups sample data: 20000 groups

Lifetime of Bulb 5 years more than 1.6 million measurements

Display Screen TFT true color 2.8inch@(16:9)

Language English,Simplified Chinese

Working Temperature Range 0℃-40℃（32℉-104℉）

Storage Temperature Range -20℃-50℃（-4℉-122℉）

Humidity Range Relative humidity less than 85%,without condensation

N.W/G.W 550g/1.5kgs

Size 172*80*60mm

Package Size 280*230*105mm

Battery Charging Time 8 hrs

Battery Li-ion battery, 5000 times Measurement

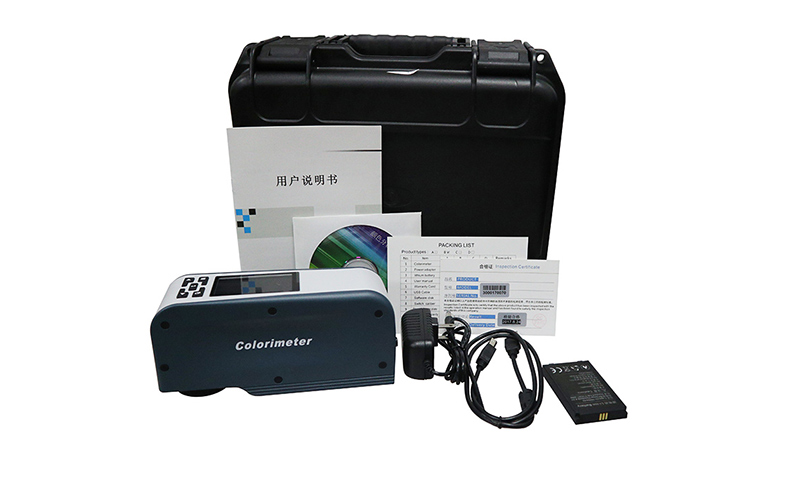

Standard Accessories AC adapter/ 3000mAH Li-ion battery/User Manual

Optional Accessories Micro Printer,Positioning Block
