WF30 Colorimeter (Repeatability ΔE 0.05)
| Display Mode: | CIELAB、CIELCH |
| Color Difference Formula: | △E*ab |
| Illumination Condition: | CIE Recommendation：8/d |
| Light Source: | LED blue excitation |
| Sensor: | Photodiode array |
| Repeated Accuracy: | △E<0.05 |
| Storage Capacity: | Type sample data : 100 with testing sample data: 200 |
| Measurement Condition: | Observer：CIE 10° Standard observer |
| Units Difference: | △E<0.2 |
| Inquiry |
|
Introduction
WF series Colorimeter is a professional colorimeter designed and produced subject to the relevant standards of International Commission on Illumination (CIE) and national stands.
Being with brand new imported key components, the instrument is well designed and features in precision, stability, easy handling, easy to learn and cost-effective.
The instrument applies to the color quality control, color difference control, color difference analysis, sampling testing and online testing
for industries as textile, printing and dyeing, garments, shoes, leather, chemical, plastic, pigment, paint, ink, printing, metal, photography and toys etc.,
as well as to the auxiliary color matching during the processes as injection, inking, painting and spraying coating etc.
Features
Repeatability <0.05
Utra-long life LED light source
Faster 0.5s measurement speed
Large capacity lithium battery supply
4mm, 8mm & 16mm optional apertures measurement
Specification
Model WF30
Color Space CIELAB CIELCH
Color Difference Formula △E*ab
Measurement Caliber Φ4mm or Φ8mm or Φ16mm
Illumination Condition CIE Recommendation：8/d
Light Source D50 D65 F11(TL84)
Sensor Photodiode array
Observer CIE 10° Standard observer
Measurement Range L: 0 to 100
Contain light way SCI SCE
Software YES
Color simulation NO
Repeated Accuracy △E<0.05(take the deviation average after 30 times
measuring the whiteboard)
Units Difference △E<0.2
Measurement Interval 0.5 Sec.
Storage Capacity Type sample data : 100 groups sample data: 20000 groups
Lifetime of Bulb 5 years more than 1.6 million measurements
Display Screen TFT true color 2.8inch@(16:9)
Language English,Simplified Chinese
Working Temperature Range 0℃-40℃（32℉-104℉）
Storage Temperature Range -20℃-50℃（-4℉-122℉）
Humidity Range Relative humidity less than 85%,without condensation
N.W/G.W 550g/1.5kgs
Size 172*80*60mm
Package Size 280*230*105mm
Battery Charging Time 8 hrs
Battery Li-ion battery, 5000 times Measurement

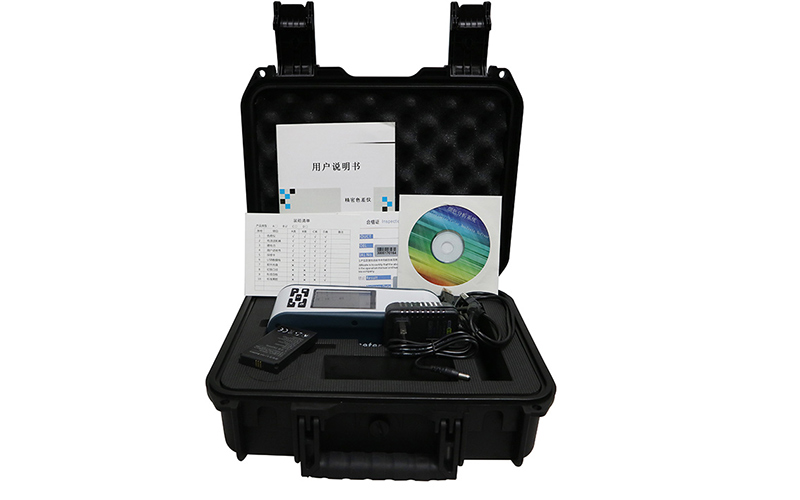

Standard Accessories AC adapter/ 3000mAH Li-ion battery/User Manual
Optional Accessories Micro Printer,Positioning Block
Payment: T/T in advance.
Delivery: as a manufacturer with sufficient ready-made stock, normally deliver the goods within 1-3 working days.
If for quantity order, please enquire delivery time privately, we will ship your order as agreed.
Warranty: 1 year quality warranty and lifetime maintenance (except consumables)
