Introduction

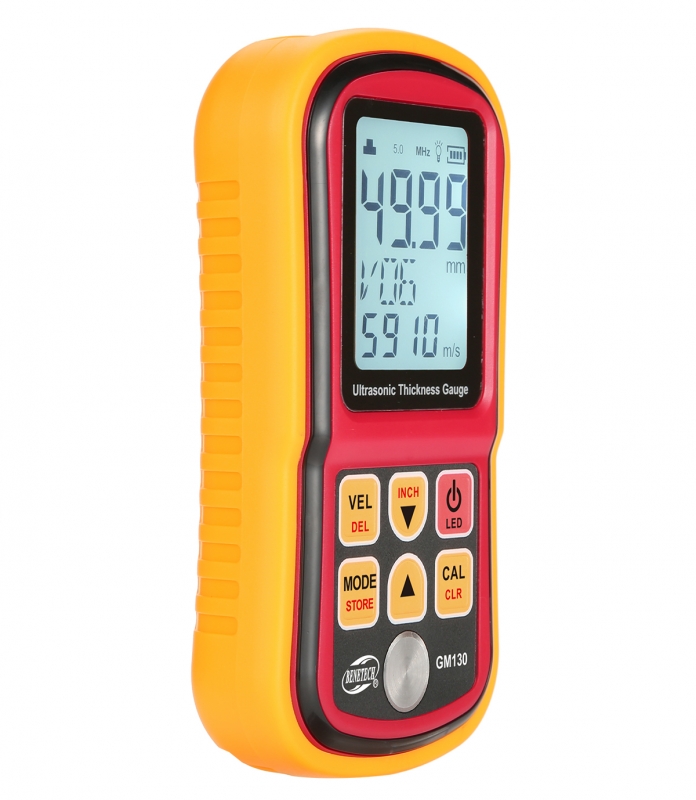

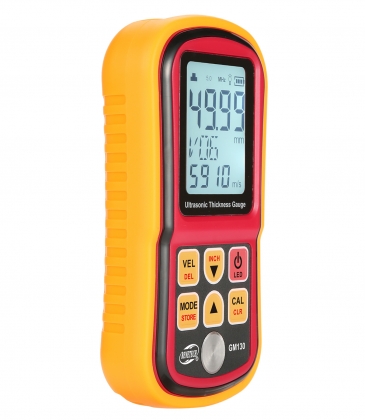

This unit is an intelligent handheld product, which adopts ultrasonic measuring principle, and is controlled by micro processor, provides quick and precise measurement of thickness for most of industrial material. This unit is widely used in various precise measurement for different hardware /parts in industrial realm; one of its important application is to monitor the level of thickness-decreasing during operation of various and pressure container. Diffusely applied in manufacture fields, metal processing, and commercial inspection.

Features

1.Upper/lower alarm setting

2.Data storage/deletion

3.Measuring sound velocity、

4.LCD backlight display

5.Low battery reminder

6.Automatic shut-down

Specification

①. Measuring range: 1.00 to 300.0mm(steel)

②. Accuracy:±(1%H+0.1mm) H denotes the measured thickness
③. Working frequency: 5MHz

④. Resolution: 0.01mm(1.00 to 99.99mm) 0.1mm(100 to 300mm)
⑤. Minimum limit for tube measuring（steel）: φ15*2.0mm( φ6mm transducer) φ20*3.0mm( φ10mm transducer)

⑥. Sound velocity range: 1000 to 9999m/s, Thickness≤25mm, accuracy of velocity:±1.25mm/Hx100%, Thickness≥25mm, accuracy of velocity: ±5%
⑦. Operating environment : Operation temperature: 0 to 40℃; Relative Humidity: <90%; Do not apply in violent vibration / erosive material; Avoid impact and humidity
⑧. Power supply:1.5V AAA * 3 PCS

⑨. Weight:223g

⑩. Size: 72*29*146mm

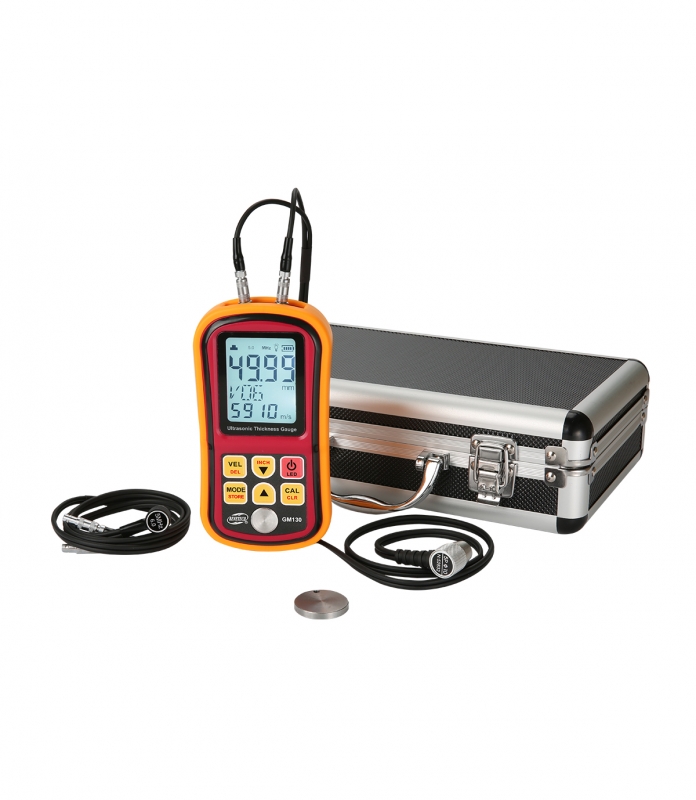

Accessories

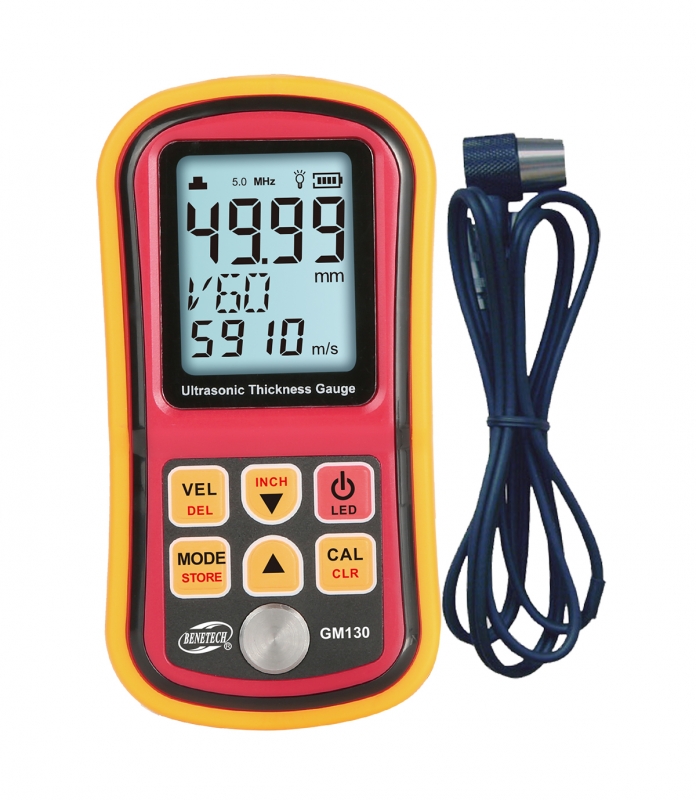

Ultrasonic Thickness Gauge*1

φ10 Transducer (5MHz)*1

φ6 Transducer (5MHz)*1

Coupling agent (50ml)*1

4mm Sample block*1

1.5V AAA Alkaline battery*3

English Instruction Manual*1

Aluminium Packing Box*1
