Introduction

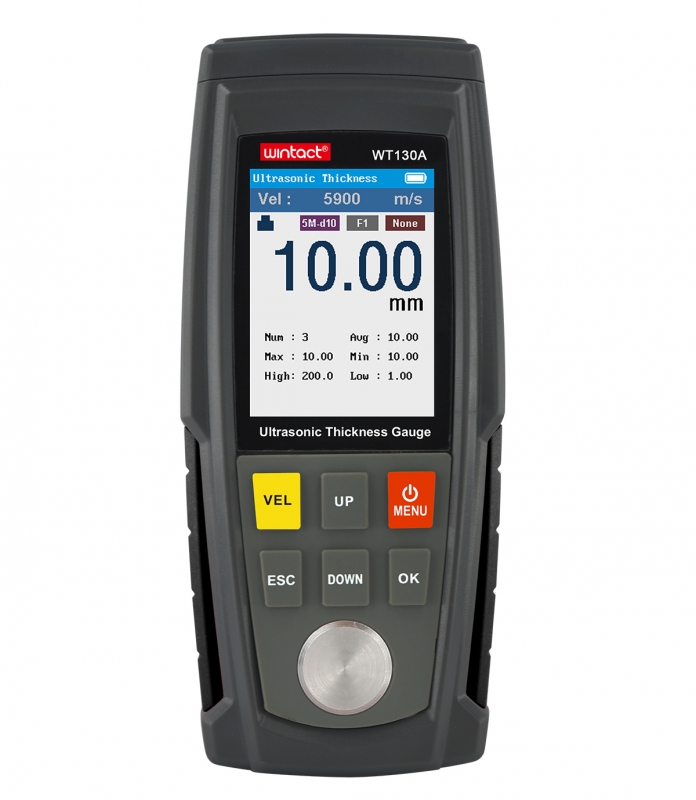

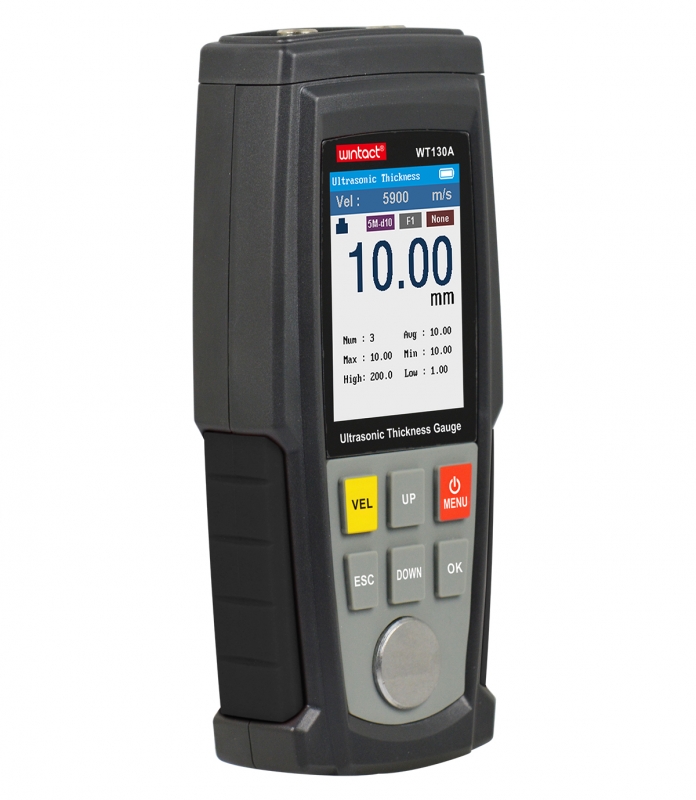

  The intelligent and hand-held ultrasonic thickness gauge is controlled by a microprocessor, which can measure thickness and sound speed of various materials quickly, accurately and without damage by ultrasonic measurement. This instrument is capable of accurate measurement for different materials or parts in industrial production, as well as monitoring pipelines and pressure vessels of production equipment, and corrosion degree of various parts in use. It can also be widely used in manufacturing, metal processing, commodity inspection and other testing areas. Any material that allows ultrasonic to transmit at a constant speed and that is distinguishable from waves reflected from the back side is applicable to this instrument.

Features

1.Menu operation
2.Color screen HD display
3.Storage function
4.Screen brightness selection
5.Automatic shutdown selection function

6. Probe optional

Specification

Measuring range 1.00～300.0mm

Data storage 1500

Probe selection √

Operation frequency 5MHz/2.5MHz

Measurement error ±(0.5%H+0.05)mm

Resolution 0.01mm(1.00 to 99.99mm) 0.1mm(100 to 300mm)

Lower limit of pipe measurement Φ20x3mm (steel)

Adjustment range of sound speed 1000～9999m/s

Temperature range of operation 0～40℃

Battery 3 Ni-MH rechargeable batteries of 1.2V

USB charging 5V 1A

Dimensions 65x146x30mm

Weight 130G

Probe Measurement parameters

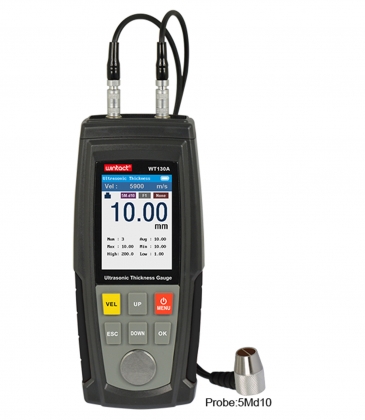

5Md10 1.0～300.0mm

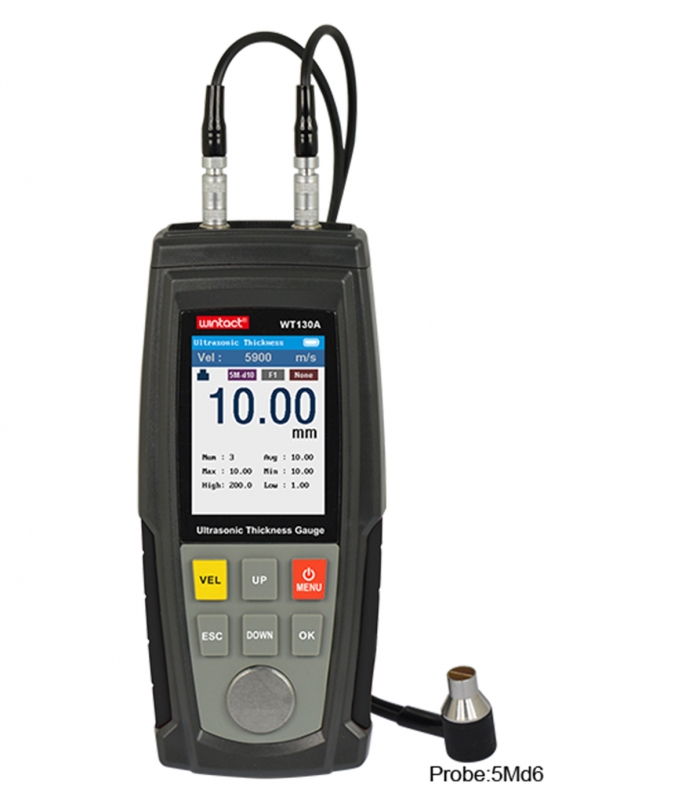

5Md6 1.0～50.0mm

2.5M 1.2～300.0mm

High temperature 1.2～300.0mm
