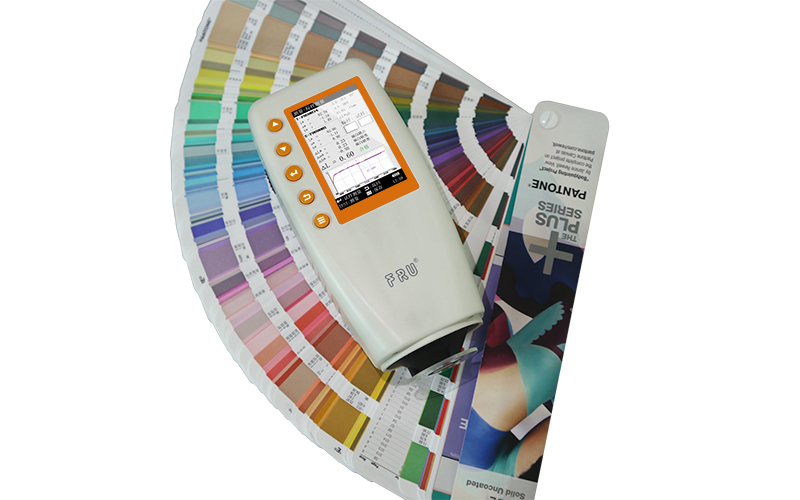

Introduction

This spectrophotomeler is based on the International Commission on llumination. Specialized R8D and production of ClE related standard and national standards. lndustrial spectrophotometer, using new imported key components parts,carefully designed for accurate and stable operation. Simple,easy to learn and understand, economical and so on. This spectrophotometer is suitable for textile, leather and plastic, paint, ink, printing, hardware, and toys. Color measurement, color analysis, color products in other industries. Quallty control, color differerce cortrol, color difference analysis, incoming sample inspection, testirg production Iine, also suitable for injection molding,oil and color matching of ink, paint spray, etc.

Main Features

Accurate data and stable measurement

Fully displayed and focused

Multl-aperture switching

Small and exquisite, easy to carry

Comprehensive functions

13 Color Spaces

Spectrophotometer includs HunterL.a. b, Hunter XYZ, CIELa.b, CLECMMK, L+Cth*, CIEL*utyt, Hunter LAB, dE XYZ, m Yellowness, Ganz, Whitness, ISO Brightness, Taube, Whiteness, positive Whiteness.

13 kinds, such as SRGB color space.

Specification

Model: WN700S (Switchable Apertures 4mm & 8mm, 16mm optional)

Geometric Conditions d/8

Color Space CIEL*a*b*、CIEL*C*h、CIEL*u*v*、Hunter LAB、CIEXYZ、Yxy、Reflectivity、CMYK、YI Yellowness、Ganz、ISO Brightness(R457 Whiteness)、Taube Whiteness、z Whiteness、sRGB

Standard Light Source A、C、D50、D55、D65、D75、F1、F2（CWF）、F3、F4、F5、F6、F7、F8、F9、F10、F11(TL84)、F12(U30)

Light Source Combined LED
Color Diff. Formula △E*ab、△E*Ch、△E*uv、 △E*Hunter、△E*cmc(2:1)、△E*cmc(1:1)、△E*94、△E*00、△E*sRGB、△E*BFD、△E*FMCII

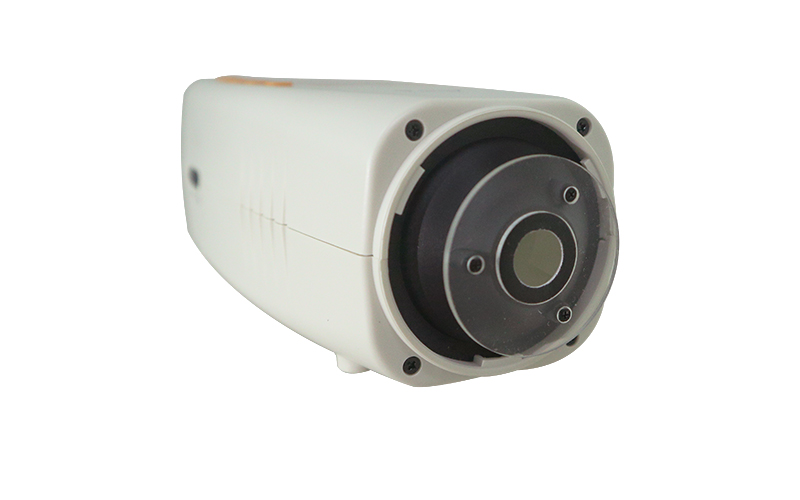

Measuring Aperture Switchable: Facula 4mm(Aperture Φ6mm)& Facula 8mm(CAperture Φ11mm); Single: Facula 16mm(Aperture Φ16mm)

SCI/SCE
Sensor Array Line array CMOS@256 pixels

Spectral Way Concave diffraction grating

Observer CIE10°(1964)、CIE2°(1931)
Wavelength coverage 400nm~700nm
Wavelength interval 10nm
Measuring interval 2.5 Second
Reflectance range 0%-200%

Repeated accuracy △E＜0.05 （take the deviation average after 30 times measuring the whiteboard）

Table Difference △E＜0.3(Measure the RAL 12-color blocks)

Light source life More than 50,000 hours

Battery power Measuring more than 10000 times

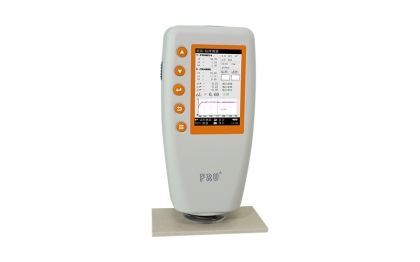

Display screen TFT true color 2.8inch@(16:9)
Data storage capacity Storage Standard 100 groups; Sample 16,000 groups
Operating temperature 0℃-40℃（32℉-104℉）
Storage temperature -20℃-50℃（-4℉-122℉）

Working humidity Relative humidity less than 85%,without condensation

G.W 1.5kgs
Size of exterior package 28*19*11cm


Standard accessories Power adapter, standard white board, standard black cavity, lithium battery, specification, PC software

Optional accessories Software(Advanced Version), Micro printer, Locating block
